GM Lighting 24VDC SlimEdge™ Modular Architectural Lightbar Accessories
Original price was: $3.67.$1.03Current price is: $1.03.
Description
24VDC SlimEdge™ Modular Architectural Lightbar
SlimEdge™ is a 24VDC architectural LED linear thin lightbar that is the next evolution in undercabinet lighting.Using high-tech Edgelite technology – SlimEdge creates an even luminance while producing a gentle, soft light.90+ CRI optics that present no diode imaging on polished surfaces.Available in 8”, 16”, 24” or 32” in white or bronze.Utilizing the wide array of connectors, SlimEdge can be configured to adapt to virtually any application.
- Rigid modular edge lit lightbar
- 0-90° with optional mounting clip
- Mounting clips and screws included
- Units join securely together with modular connectors
- Class 2 Maximum run on a given lead is 16′
- 24VDC remote power supply required
- Rated at 5W per foot
- Edge-lit technology results in diode-free imaging on polished surfaces
- 90+ CRI
- 2700K, 3000K
- UL
- 5 year warranty
.
Spec Sheet
Spec Sheet
Info
| Catalog No. | Description |
|---|---|
| EDGE-BB-1-W (BK) | SlimEdge to SlimEdge bar to bar connector – White or Black |
| EDGE-90-W (BK) | SlimEdge to SlimEdge 90° connector – White or Black |
| EDGE-IC-W (BK) | SlimEdge to SlimEdge inside corner connector – White or Black |
| EDGE-TD-W (BK) | SlimEdge touch dimmer – White or Black |
| EDGE-MS-W (BK) | SlimEdge mechanical switch – on/off – White or Black |
| EDGE-AB-W | SlimEdge adjustable bracket |
| Catalog No. | Description |
| DPPS-24W-24V | 24 Watt 24 Volt Plug In Power Supply-White |
| DPPS-36-24V | 36 Watt 24 Volt Plug In Power Supply-White |
| GMC-MM-3-W | 3″ Male to Male Cable Connector- White |
| GMC-MM-6-W | 6″ Male to Male Cable Connector- White |
| GMC-MM-12-W | 12″ Male to Male Cable Connector – White |
| GMC-MM-24-W | 24″ Male to Male Cable Connector – White |
| GMC-MM-39-W | 39″ Male to Male Cable Connector – White |
| GMC-MM-60-W | 60″ Male to Male Cable Connector – White |
| GMC-FF-3-W | 3″ Female to Female Cable Connector – White |
| GMC-PS-24-W | 24″ Lightbar to Power Connector – White |
| GMC-PS-48-W | 48″ Lightbar to Power Connector – White |
| GMC-PS-60-W | 60″ Lightbar to Power Connector – White |
Be the first to review “GM Lighting 24VDC SlimEdge™ Modular Architectural Lightbar Accessories”
Related products
-
Sale!

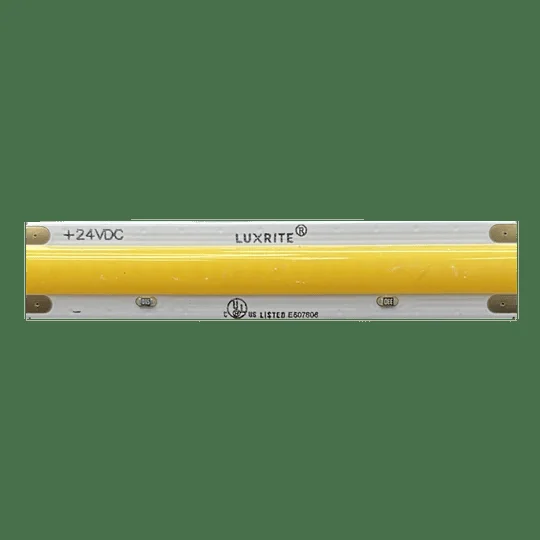

Luxrite Taperite LR4516X 4.5W/FT Pro COB 10MM LED Tape Light 100FT 27K-50K
Original price was: $724.73.$123.17Current price is: $123.17. Add to cart -
Sale!
GM Lighting Vision120™ 120V Standard and High Output Wet Location LED Tape
Original price was: $14.14.$3.73Current price is: $3.73. Add to cart -
Sale!

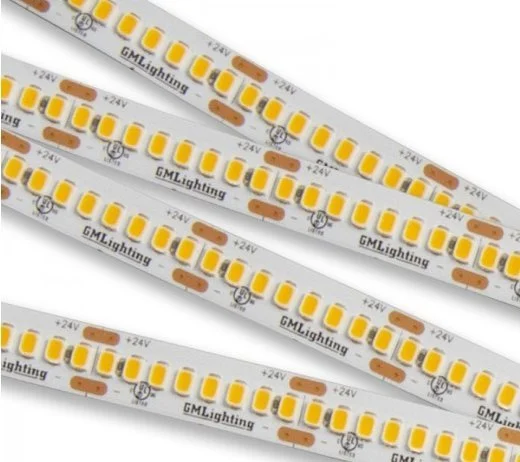

GM Lighting LTR-S-24V 2.5W 100FT LED Tape Indoor Location 27K-40K
Original price was: $718.28.$128.19Current price is: $128.19. Add to cart -
Sale!

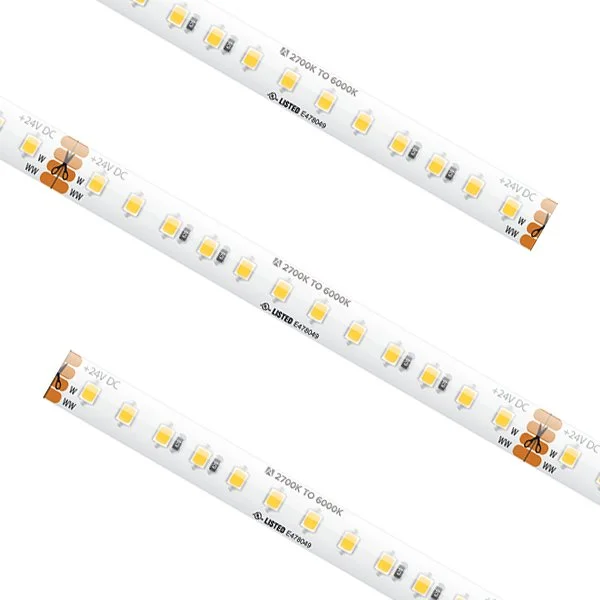

American Lighting HTL-TW 16FT 2.9W/FT 24V LED High Output Tunable Tape Light 27K-60K
