Orbit LBAL1200 LED Emergency Lighting Ballast, 7.8W, 1200 Lumens
Original price was: $123.30.$28.57Current price is: $28.57.
Description
| Category | Line Voltage |
| Page | H15 |
| Features: | |
| – Dual-Voltage Input 120/277VAC Operation- UL Classified for field installation- Suitable for Damp Location (0°C – 50°C)- Provides constant power output to the load during emergency mode operation- 90 minute minimum emergency operation over full temperature range- Injection Molded, engineering grade, 5VA Flame Retardant, high-impact, thermoplastic – Black finish- Installs inside, on top, or in remote of the fixture- Output short/overcurrent protection: Electronic limiting, with normal operation resuming upon removal of fault- Can be operated as NORMALLY-ON, NORMALLY-OFF or SWITCHED LOAD- Output classification: Class 2 Compliant- Surge protection: Per C62.41 (TVS)- Input overcurrent protection: Fusible Link- LED illuminated and remote mounted test switch- Charge/Power ‚¬œON‚¬� LED indicator light and push-to-test switch- Maintenance-free, rechargeable NiCd Battery- 24 Hour max battery recharge time- 5 year warranty on electronics and housing- Meets UL924, NFPA 101 Life Safety Code | |
| Certification: |
CatalogNumber |
UPC |
OutputVoltage(Vdc) |
OutputCurrent(mAdc) |
OutputSystemWattage(Constant) |
OutputLumens |
Input Current (A) |
Input Power (W) |
| LBAL800 | 615624013383 | 20 – 50 | 250 – 100 | 5 | 800 | 0.061 | 3.9 |
| LBAL1200 | 615624013390 | 20 – 50 | 390 – 156 | 7.8 | 1250 | 0.065 | 4.8 |
| LBAL1600 | 615624013406 | 20 – 50 | 535 – 214 | 10.7 | 1700 | 0.087 | 5.7 |
| LBAL2000 | 615624013413 | 20 – 50 | 685 – 274 | 13.7 | 2200 | 0.11 | 6.9 |
| LBAL2400 | 615624013420 | 20 – 50 | 850 – 340 | 17 | 2700 | 0.11 | 7.9 |
*Lumen output based on LED light source having efficacy of 160 lm/w. Actual output may vary depending on light source.
ORBIT LED LIGHTS COMPATIBILITY TABLE |
|||
| LWP1-28W-WW | LWP25-12W-CW | LWP2-80W-CW | LCM2-45W-CW |
| LWP1-50W-CW | LWP25-12W-WW | LP741-30W-P-CW | LCM2-60W-CW |
| LWP1-80W-CW | LWP25-30W-CW | LCM7-40W-CW | LFL6-80W-T/SF |
Download PDF File
Specification
Additional information
| ChoosePack | 1Pack@6Pack |
|---|
Be the first to review “Orbit LBAL1200 LED Emergency Lighting Ballast, 7.8W, 1200 Lumens”
Related products
-
Sale!

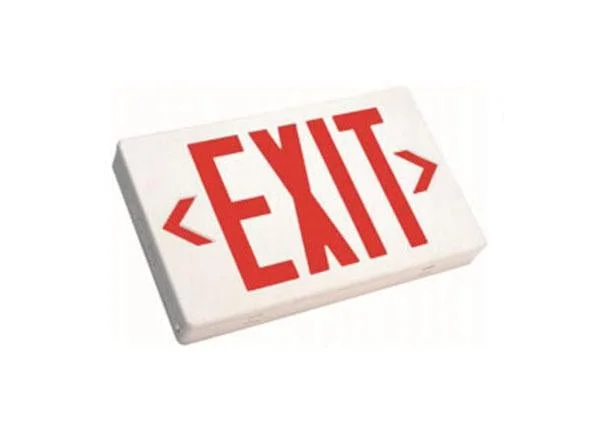

Westgate LED Exit Sign White Housing 120~277V
